Thermostats
WaterFurnace offers a wide range of thermostat options including communicating and programmable thermostats for the most temperature control possible.
Almost all WaterFurnace thermostats support programmable schedules. All support 3 heating and 2 cooling stages and auto-changeover. Please consult the thermostat feature chart for a complete summary of all features by model.
Thermostat Compatibility
Select a Versatec model to view compatible thermostats.
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
||||||
Aurora Advanced Controls |
||||||
Aurora Premium Controls |
• | • | ||||
Aurora Base Control w/UPC2 BACnet |
||||||
Aurora Advanced Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM |
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
||||||
Aurora Advanced Controls |
||||||
Aurora Premium Controls |
• | • | ||||
Aurora Base Control w/UPC2 BACnet |
||||||
Aurora Advanced Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM |
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
• | • | • | • | • | • |
Aurora Advanced Controls |
• | • | • | • | • | • |
Aurora Premium Controls |
• | • | • | • | • | • |
Aurora Base Control w/UPC2 BACnet |
• | • | • | |||
Aurora Advanced Controls w/UPC2 BACnet |
• | • | • | |||
Aurora Premium Controls w/UPC2 BACnet |
• | • | • | |||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM |
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
• | • | • | • | ||
Aurora Advanced Controls |
||||||
Aurora Premium Controls |
||||||
Aurora Base Control w/UPC2 BACnet |
• | • | • | |||
Aurora Advanced Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM |
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
• | • | • | • | ||
Aurora Advanced Controls |
||||||
Aurora Premium Controls |
||||||
Aurora Base Control w/UPC2 BACnet |
• | • | • | |||
Aurora Advanced Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM (if ordered with wall mounted thermostat option) |
• | • | • | • |
TP32U04 |
TPCC32U03WWAT |
TPCM32U04A |
TP32S01 |
TP32S02 |
TA32V06C |
|
Aurora Base Control |
• | • | • | • | • | • |
Aurora Advanced Controls |
||||||
Aurora Premium Controls |
• | • | • | • | • | • |
Aurora Base Control w/UPC2 BACnet |
||||||
Aurora Advanced Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet |
||||||
Aurora Premium Controls w/UPC2 BACnet w/VAV |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Primary Twinning |
||||||
Aurora Premium Controls w/UPC2 BACnet w/Secondary Twinning |
||||||
CCM |
*Please consult WeDoGeo or a WaterFurnace representative to confirm compatibility. WaterFurnace has a policy of continual product research and development and reserves the right to change design and specifications without notice.

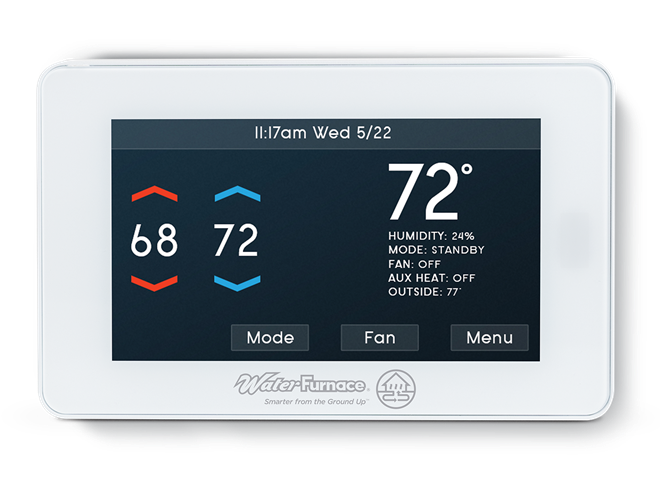

CC-U03 Thermostats
Full-featured programmable communicating color touch-screen thermostat. Offers intuitive control and energy usage details. Optional base plate available.
Model: TPCC32U03WWAT
Auto Changeover
Programmable
Touchscreen
Text Based
Humidity
4 Wire
Sensor
Communicating

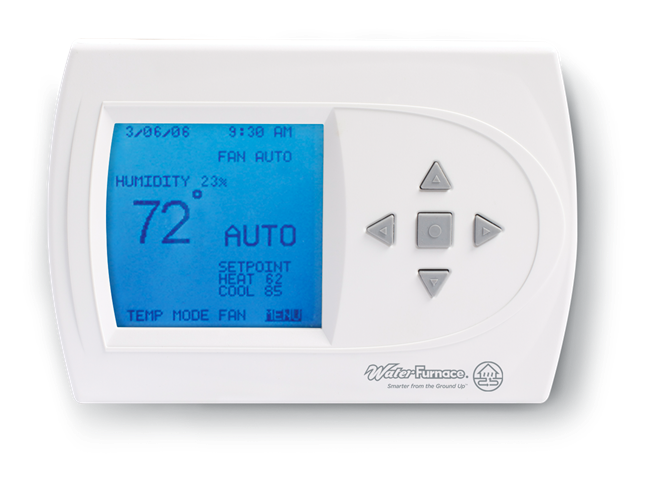

CM-U04A Thermostats
Powerful communicating thermostat with text based output. Humidity control and compatibility.
Model: TPCM32U04A
Auto Changeover
Programmable
Text Based
Sensor
Communicating
U04 Thermostats
Versatile programmable thermostat great for any system featuring a text based display and humidity control.
Model: TP32U04
Auto Changeover
Programmable
Text Based
Comfort Talk
Humidity
Sensor

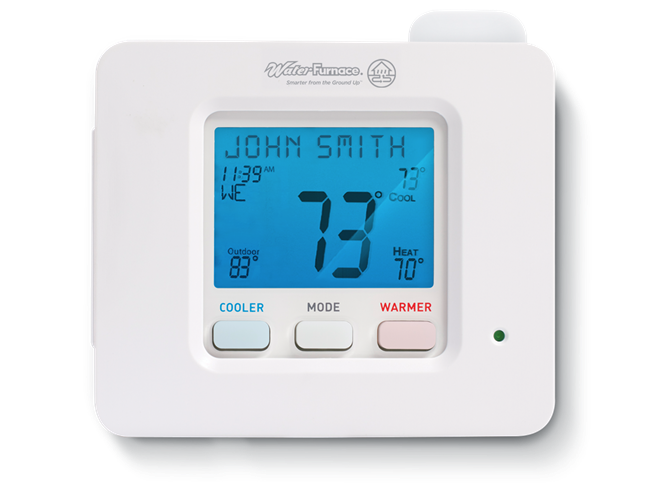

S01/S02 Thermostats
Programmable thermostat for single or dual stage, ECM blower units. Optional wireless sensor capable.
Models: TP32S01/TP32S02
Auto Changeover
Programmable
Text Based
Fault Flash
Humidity (S02 only)
Sensor

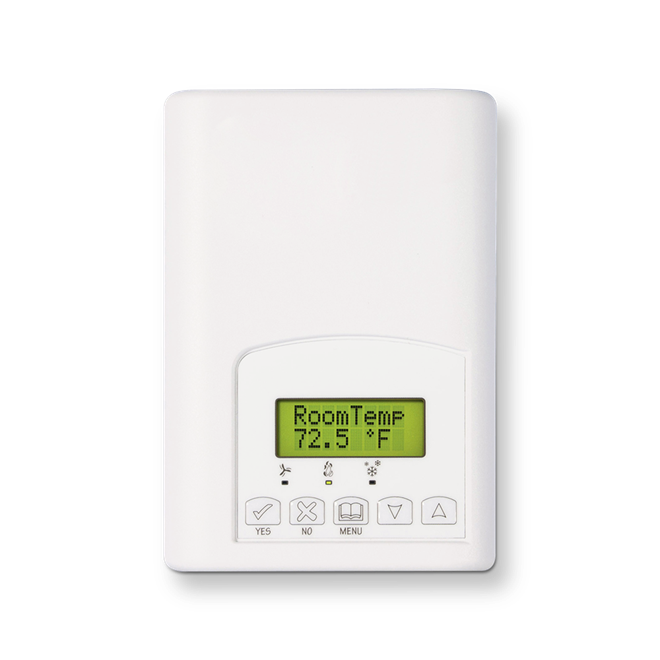

TA32V06C Thermostats
Programmable thermostat for single stage, ECM blower units. Optional wireless sensor capable. BACnet compatible.
Models: TA32V06C
Auto Changeover
Programmable
Humidity
Sensor
|
Heat/Cool Stages
|
Color/BW
|
Auto Changeover
|
Programmable
|
Touchscreen
|
Text Based
|
Fault Flash
|
Comfort Talk
|
Humidity
|
4 Wire
|
Ext Sensor
|
Communicating
|
BACnet
|
|
TP32U04 |
3/2 | BW | • | • | • | • | • | • | |||||
TPCC32U03WWAT |
3/2 | Color | • | • | • | • | • | • | • | • | • | ||
TPCM32U04A |
3/2 | BW | • | • | • | • | • | • | • | • | |||
TP32S01 |
3/2 | BW | • | • | • | • | • | • | |||||
TP32S02 |
3/2 | BW | • | • | • | • | • | • | • | ||||
TA32V06C |
3/2 | BW | • | • | • | • | • |
- Auto Changeover
- Provides the option to automatically switch from heating to cooling with no effort.
- Programmable
- Ability to regulate different temperatures for different days or times of day.
- Touch Screen
- Sleek touch-screen display to adjust the temperature.
- Text Based
- Current conditions and status messages are rendered on-screen in text.
- Fault Flash
- Faults are communicated via light flash.
- Comfort Talk
- Thermostat automatically translates Fault Flash codes to on-screen text for easy diagnosis.
- Humidity
- Allows the ability to view and control humidity levels throughout your home.
- 4-Wire
- Easy upgrade of existing thermostat wiring rather than updating to the 8-wire offering.
- External Sensors
- Ability to gather additional data on indoor/outdoor temperature.
- Communicating
- Communicates seamlessly with the Aurora family of controls to display faults and energy usage right at the thermostat.
- BACnet
-
Monitor your unit's energy usage right at the thermostat. (Cannot be used with factory installed UPC2 options)
